Foot-operated sealer for making special bags
For processing block-bottom bags or sealing tube type films

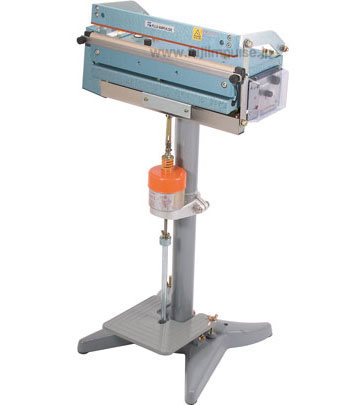

Fi-400Y-5 PK
Click here for Fi-400Y-5 PK: with Standard Table, Fi-400Y-5 PK: with Special Table

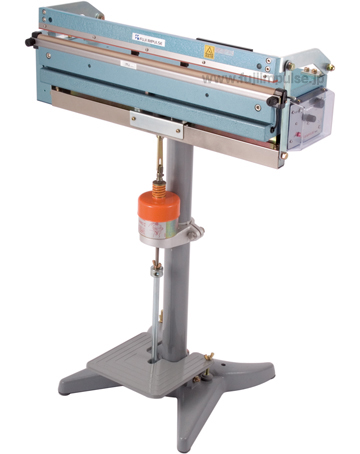

Fi-600Y-10 PK
Click here for Fi-600Y-10 PK: with Standard Table, Fi-600Y-10 PK: with Special Table
Main Features
Applications and Features:
Foot-operated sealer for making special bags
Operating methodd:
Foot-operate
Packaging type:
Seal only
Daily use frequency as model selection guideline:
1,000 to 3,000 bags, foot-operated
Bag size:
40 and 60 cm (15.7 and 23.6 inches)
Latest type:
Single-side heating type G,
Double-side heating type F,
400 Cutting type G,
600 Cutting type H
Compatible packaging materials (total thickness of two or more sheets):
Single-side heating type:
PE : 0.4 mm (15.7 mil),
PP : 0.3 mm (11.8 mil),
NY : 0.3 mm (11.8 mil),
PVA : 0.3 mm (11.8 mil),
other laminated materials : 0.4 mm (15.7 mil)
Double-side heating type:
PE : 0.6 mm (23.6 mi),
PP : 0.4 mm (15.7 mil),
NY : 0.4 mm (15.7 mil),
PVA : 0.4 mm (15.7 mil),
other laminated materials : 0.5 mm (19.7 mil)
■Overview of the Fi-400Y PK / Fi-600Y PK series
The Fi-400Y PK / Fi-600Y PK series allow film to pass through the sealing area, making it possible to seal other than the end of a bag. It can be used also for processing block-bottom bags.The Fi-400Y PK / Fi-600Y PK series is a long selling product that have been utilized for packaging food or industrial products.
■ Clamping retaining device PK-102 as standard equipment makes foot-operation easy
The Fi-400Y/Fi-600Y series of sealers come standard-equipped with the clamping retaining device, PK-102. The clamping retaining device stabilizes the seal precision and reduces the load of foot operation.
Set the heating time using the timer on the sealer and set the clamping retention (i.e., cooling) time using the timer on the clamping retaining device PK. Situate the bag on the sealing area. Simply step on the pedal to create a seal.
■ What is the clamping retaining device PK-102?
It evens out the sealing finish.
With PK-102, the user can adjust the sealing pressure and clamping retention (i.e., cooling) time according to bag material, which was not possible with the timer on the foot-operated sealer alone. This reduces the strain on the user caused by foot-operation, and resolves the problem of disparity in the sealing finish among different operators.
Clamping retention time setting range:
User-defined heating time + 0.0 to 5.0 seconds
Reduces work strain; simple operation
Step lightly on the pedal. The solenoid then works to retain the clamping. While a foot-operated sealer must ordinarily be continuously operated by foot, a PK-equipped foot-operated sealer allows the user to release the foot from the pedal at this point.
The clamping lever and the pedal automatically return to the initial position after heating and cooling periods are over.

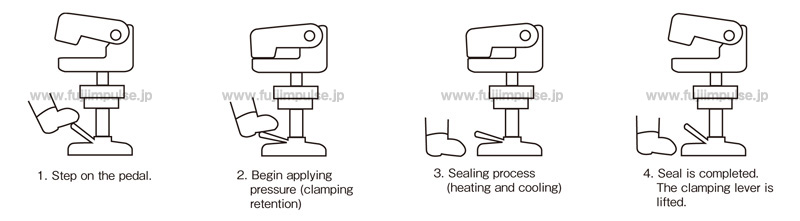

PK-102 operation process
1. Step lightly on the pedal.
2. The solenoid works to automatically begin applying pressure. At this point, the user is no longer required to continue stepping on the pedal.
3. After heating is completed, the pressure continues to be applied during the cooling time (i.e., clamping retention time) that the user had set using PK-102.
4. After cooling is completed, the retained pressure is automatically released and the clamping lever lifts to complete a single operation cycle.
■ A comprehensive product lineup
We offer a comprehensive lineup of models to accommodate a variety of bag sizes (widths), thickness and materials.
Available seal lengths are 400 and 600 mm.
Models for seal widths of 2, 5 and 10 mm are available.
In addition to a single heater type capable of sealing materials up to 0.3 mm thick (total thickness of overlapping sheets), there is a double heater type capable of sealing thick or laminated bags up to 0.4 mm thick (total thickness of overlapping sheets).
The double-side heating type is good also for gusset bags.

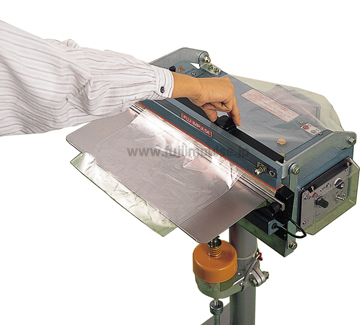

With cutting mechanism: Type YC
Type YC is equipped with a cutting mechanism to cut excess bag (film) ends. Slide the cutter knob sideways in either direction to cut the tube-shaped film after sealing it.
For in-between cuts: Types 5C and 10C
Types 5C and 10C use a cutting heater to cut through the centerline of the sealed area. It can be used to seal and cut apart the tube-shaped film at the same time to make bags.
Cutting type type
The cutting type can be used for processing bags in which a round-wire melt-cutting heater is used to cut the bag (film). Although the melt-cutting heater slightly fuses the film together, there is hardly any sealing strength.
Options
■ A comprehensive lineup of tables to choose from Choose a table for your work environment.
Various tables are available as option based on your environment and model.
400 standard table

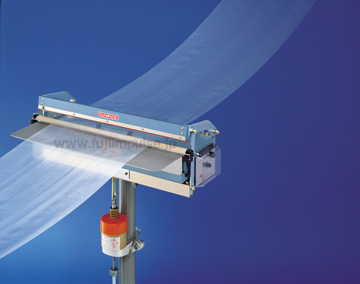

600 (Special) Table
Safety Measures
■ Timer to prevent overheating
Should the heater ever overheat (should the heater continue to heat beyond the first four seconds of heating), the power switch automatically shuts off to stop the heater from heating further.
