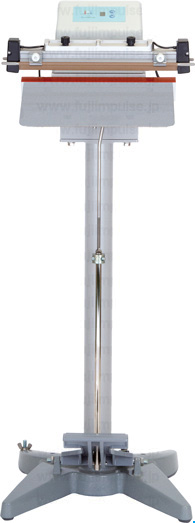

Foot-operated impulse sealer for watery items
Easy cleaning and parts replacement
Main Features
Applications and Features:
For watery item
Operating method:
Foot-operated
Packaging type:
Seal only
Daily use frequency as model selection guideline:
1,000 to 3,000 bags, foot-operated
Bag size:
30 cm (11.8 inches)
Latest type:
Type A
Compatible packaging materials (total thickness of two or more sheets):
PE : 0.4 mm (15.7 mil),
PP : 0.3 mm (11.8 mil),
NY : 0.3 mm (11.8 mil),
PVA : 0.3 mm (11.8 mil),
other laminated materials : 0.4 mm (15.7 mil)
■ Structurally suitable for sealing watery items
This is a foot-operated sealer specifically designed for sealing watery item.
The heating element is attached to the upper lever where is less likely to be exposed to liquids.
Ideal for sealing retort pouches, etc.

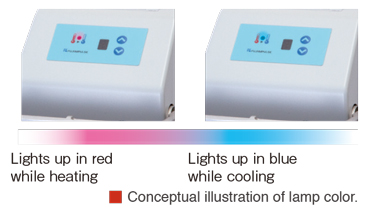

■ Heating and cooling time indicated by the color of the lamp
The heat/cool lamp lights up in red during heating and in blue during cooling, allowing you to visually check the "cooling time".
When the cooling is finished, a beep sounds to indicate the finish of sealing.
■ Easy-to-clean sealer
This sealer was developed in response to requests from users who want to easily clean the seal area that tends to be contaminated with seasoning liquid, etc. during operation.
With a structure that allows for easy cleaning and parts replacement, this sealer is useful for improving the workplace environment in terms of hygiene management and implementing HACCP.

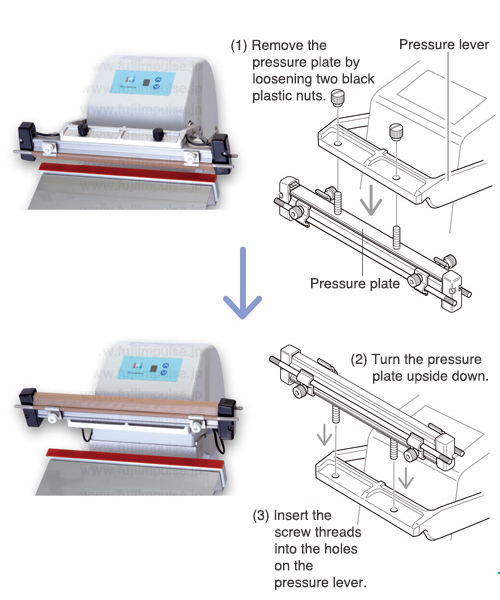

Detachable upper seal jaw
The pressure plate is fixed with plastic nuts to facilitate cleaning and parts replacement, making it possible to attach and detach from the pressure lever.
Loosen the plastic nuts to remove the pressure plate, turn it upside down, and set it on the pressure lever, so you can clean and replace parts with ease.
Inset-type silicone rubber and special seal receiving plate
Push the silicone rubber into the dovetail cross-sectional groove of the seal receiving plate to fix it.
Standard equipped with a stainless steel table
The mounting position of the table can be adjusted forward and backward.
Safety Measures
■ Timer to prevent overheating
When power continues to be distributed to the heating element for about 4.0 seconds or more, the power switch turns off automatically and the power shuts off.
