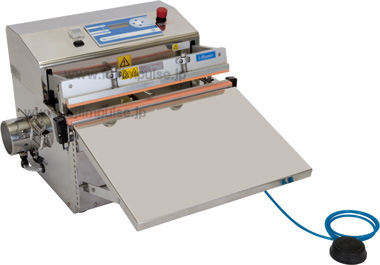

Clean-Room Specification, Electric-Powered Tabletop Vacuum Sealer
Different options for vacuum pump available.
Operates using the solenoid-drive system.
Compact tabletop model capable of creating a vacuum-seal width of 46 cm (18 inches).
Main Features
Applications and Features:
Tabletop/electric vacuum sealer
Operating method:
Electric, solenoid-drive system
Packaging type:
Seal only & vacuum
Daily use frequency as model selection guideline:
1,000 bags, electric
Bag size:
46 cm / 18 inches
Latest type:
Type A
Compatible packaging materials (total thickness of two or more sheets)：
V-460C series / single-side heating type
PE : 0.3 mm (11.8mil),
PP : 0.3 mm (11.8mil),
NY : 0.3 mm(11.8mil),
PVA : 0.3 mm (11.8mil),
other laminated materials : 0.3 mm (11.8mil)
V-460C series / double-side heating type
PE : 0.4 mm (15.7 mil),
PP : 0.4 mm (15.7 mil),
NY : 0.4 mm (15.7 mil),
PVA : 0.4 mm (15.7 mil),
other laminated materials : 0.4 mm(15.7 mil)
■Overview of V-460C series
The V-460C series comes with an exhaust fan and duct flange mounted on the side of the main unit. The particles generated inside the machine can be discharged out of the cleanroom through an exhaust hose.
All V-460C sealers come equipped with the ONPUL heating temperature control system that allows users to set and maintain an ideal heating temperature, and have an easy-to-maintain solenoid-drive system. They are also compact and allow you to achieve reliable vacuum seals and packaging with a simple operation.
In addition, you can choose the vacuum generator and adjust the length of the vacuum nozzle according to your situation and purpose.

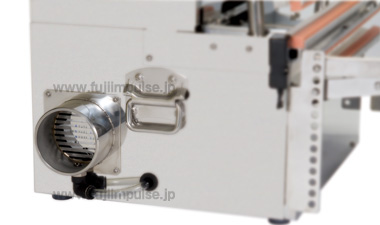

■ Equipped with an exhaust fan and duct flange
We put an exhaust fan and duct flange on the side of the unit. Using these and an exhaust hose, you can remove the particles generated inside the machine out of the cleanroom.
■ Different options for vacuum pump available.
You can choose from three different types of vacuum generators based on your specific purpose and environment.
At the time of purchase, please select the type that best fits your needs from the following three:
Click on any image below for a larger image.
Type |

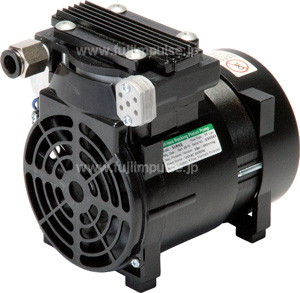

Standard |
Model |
50RNS |
Image |
 |
Features |
Oil-free piston type |
Exhaust speed |
39 L/min |
Ultimate vacuum |
−87.0 kPa |
Type |
Simplified de-airing Type S |
Model |
FDP-10 |
Image |
 |
Features |
Oil-free diaphragm type |
Exhaust speed |
20 L/min (using two units)n |
Ultimate vacuum |
−58.6 kPa |
Type |

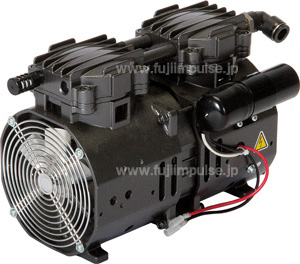

High-speed de-airing Type H |
Model |
DOP-80S |
Image |
 |
Features |
Oil-free piston type |
Exhaust speed |
High-speed de-airing (Type H) |
Ultimate vacuum |
−96.0 kPa |
■ Cost reduction and easier maintenance with a solenoid-drive system
These sealers are equipped not with an air-drive system but a solenoid-drive system that makes use of electromagnetic force.
The solenoid-drive system does not require the external air piping system to feed air. This system not only makes maintenance easier, but allows you to reduce the total cost, including those for maintaining the machine and the sealer.
■ Use of I-heating element
Use of I-heating element, which expands relatively little when heated, reduces the chance of the heating element breaking in the middle. Its use also prolongs the life of peripheral components such as the temperature sensor that comes in contact with the heating element.
Click here to learn more about I-heating element.

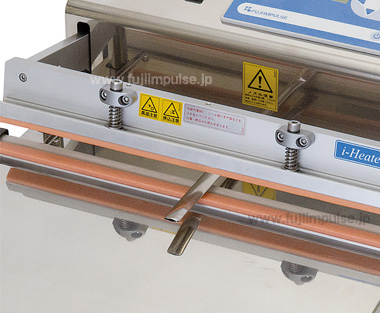

■ Adjustable nozzle length
To accommodate vertically long bags, the length of the nozzle can be adjusted in eight-step 10 mm increments from 10 mm to 80 mm.

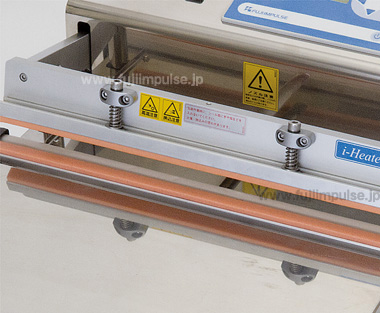

From the left, pictures show the nozzle completely retracted, the nozzle extended at 40 mm, and the nozzle extended at 80 mm.
■ Standard-equipped with temperature control system
・ Seal heating temperature: 60 to 250 ℃/ 140 to 480 ℉
・ Seal cooling temperature: between 40 ℃/100 ℉ and the seal-heating temperature
Setting the ideal sealing condition
The most prominent feature of the ONPUL system is the ability to set the ideal sealing condition.
The heating temperature setting is made possible through the use of a high-sensitivity temperature sensor for temperature control, and a microcomputer controller.
Regardless of the air temperature or the temperature fluctuations in the machine, the ONPUL system enables you to set and maintain the heating temperature just right for melting film. As a result, the ONPUL system is energy efficient, improves the sealing precision, and reduces the wear on parts such as the heating element.

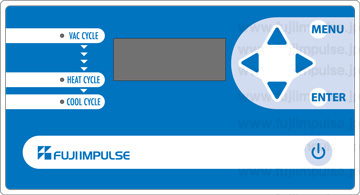

■ Easy-to-operate microcomputer controller
The microcomputer controller is used to select the work method and vacuum method, and to set sealing conditions. The touch screen makes the setting easy, and the LCD screen allows you to review the setting as needed.
■ Switch among 4 different sealing methods
The following sealing methods can be combined to create a total of 4 different sealing methods. Select a sealing method to meet your needs, including selecting to best suit the characteristics of the packaged material and to obtain your desired packaging finish.
▼ Work method options
・ Vacuum + Seal
・ Seal only
▼ Vacuum method options
・ Vacuum guage
・ Vacuum timer
・ Manual operation
4 types of sealing methods
1. Seal only
2. Vacuum by manual + Seal
3. Vacuum by timer + Seal
4. Vacuum by vacuum gauge + Seal
■ Register up to 10 work patterns
The user can register up to 10 customized work patterns. By calling up a registered pattern on the microcomputer controller, the user can always perform a programmed work under the same condition.

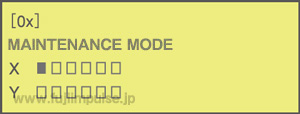

■ Troubleshooting using the help function
Switch to the Maintenance Mode on the LCD screen to see any troubled spots on the machine indicated by a blinking light. This function enables an early detection of problems that need to be addressed.
The black square in the illustration below indicates a blinking light while the white squares indicate a solid light.
■ Adjustable table height and angle
The height and angle of the table, which comes standard-equipped, can be adjusted to suit the package content.
■ Standard-equipped with air filter
All V-460 sealers come with an air filter that removes moisture, fine powder, and foreign objects that are suctioned through the nozzle.
Options

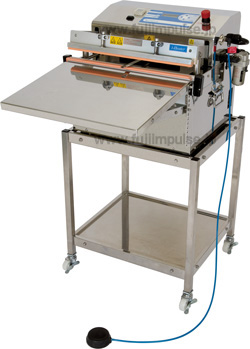

■ Stainless-steel stand
A stand is available in situations where you cannot secure appropriate space to place the sealer.
Safety Features
■ Overheating prevention
a. When power continues to be distributed to the heating element for about 4.5 seconds or more, the breaker turns off automatically and the power shuts off.

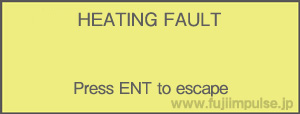

b. Also, when an increase in temperature is detected during the cooling process, the lever will be released to return to its initial position and an error message will be displayed on the control unit.
■ Anti-finger jamming in sealing area
When the lever is being pressed down, if a foreign object such as a finger is caught in the sealing area and prevents the lever from completing its motion within a specified period of time, the lever will be released and will return to its initial position.※1
※1 Small fingers such as those of small children may not stop the clamping lever from coming down completely.
■ Heating element malfunction prevention
To prevent heating while the lever is in the open position, power does not flow to the heating element to start heating unless both the position sensor on the lower side of the lever and the microswitch are turned on.
■ Emergency stop
In an emergency, press the Emergency Stop button to turn off the breaker and shut off the power.
