PTT-100
Model |
PTT-100 |
Power |
AC100-240 V 50/60 Hz |
Power Consumption W |
5 |
Machine Weight kg |
8 |
Machine Dimensions mm W x D x H |
364 x 260 x 198 |
Max Peel Strength N (Newton) |
100 |
Units |
N, kgf, lbf |
Sampling Rate point / sec. |
100 |
Peel Speed mm/min |
200 or 300 |
Data Output |
USB cable |
Precision |
±0.2% of full scale |
■ Data Contents of Seal Strength
1. Date, Time
2. Max Peel Strength, Mean Value, Seal Width
3. Error No.
4. Operator (8 Character Limit)
5. Peel Strength (Seal Strength)
■ Data Management Software PTT-Master
System Requirements
USB 2.0 / 1.1 Interface Equipped
PC / AT Compatible with Microsoft Windows 8.1/10

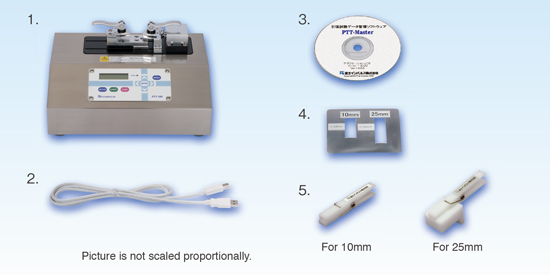

■ Package Contents
1. PTT-100
2. USB cable
3. Data Management Software PTT-Master; CD-ROM
4. Film cutting template
5. Specimen setting gauge (2 types)
