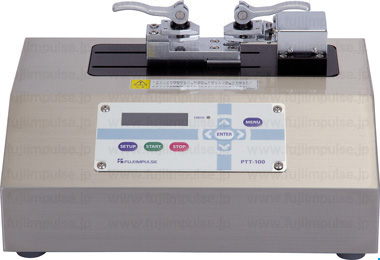

Peel Tensile Tester

Measure seal strength with easy operation Output data to archive seal strength in PC

 

 

 

■ Peel Tensile Tester with Data Management Software

・ Optimized with ASTM F88-00 "Standard Test Method for Seal Strength of Flexible Barrier Materials"

・ Data management software PTT-Master standard equipped.

・ Designed specifially for testing plastic film seal strength

・ Only necessary functions were picked from usually expensive testers, making it available at a reasonable price.

・ Lightweight, compact and portable body.

 

Until now, the most common way to test seal strength was to:

・ Check by hand, pulling on the sealed section.

・ Do liquid penetrant tests to check for leaks.

Times have changed, particularly in Japan where security and reliability of seals are in higher demand due to some recent food mislabeling scandals. To respond to these demands, FUJIIMPULSE will introduce a product in the new category of peel tensile testers specializing in plastic films.

 

■ General Use and Application

1 Food Packaging

 Conduct random testing before hot water or retort sterilization.

2 Medical Packaging

 Test seal strength of sterile bags before autoclave sterilization.

3 In Packaging Factories

 Test packaging for appropriate seal strength and manage data for each lot.

 

■ Data Management Software PTT-Master

The PTT-100 not only tests the seal strength but also outputs measurement data from the test to your PC via the USB cable included.
The PTT-Master allows you to maintain and manage the data on a PC. It can display the data in a graphical or tabular form on the PC, allowing you to manage the data visually.
Furthermore, it is equipped with a function that displays the mean and minimum values as well as standard deviation, all of which are invaluable in inspecting the same sample multiple times.

 

■ Equipped with Useful Functions

For the easier use of PTT-100, the machine is equipped with the following useful functions:

1 Up to five multiple test patterns can be registered. It is easy to change the setting conditions when testing test pieces with different test conditions and reading criteria.

2 Equipped with the Daily Check Function that allows you to quickly check the measurement functions before operation.

3 It automatically determines when to complete the mesurement. It can measure complex seal surfaces in addition to one-line and two-line seals. Manual measurements are also possible.

4 Test counter display. Very useful for identification when testing a large number of samples.

5 You can choose measurement unit from the following list.

Pressure Unit: N, kgf, or lbf
Displacement Unit: mm or inch

 

■ Simple Operation

1 Use the film-cutting template.

2 Set specimen to the thin-film grips.

3 Press START button to start measurement.
