Tabletop Impulse Sealer
The most basic, easy-to-use tabletop impulse sealer

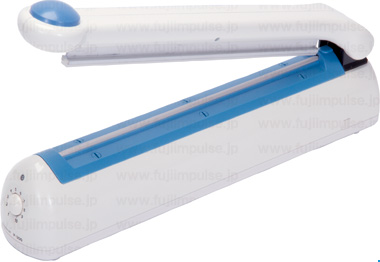

Photo of P-300

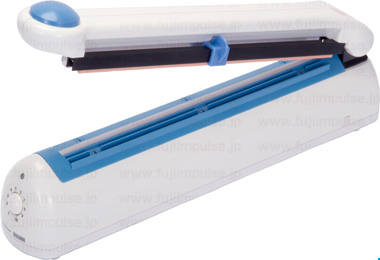

Photo of PC-300 with cutter mechanism
Main Features
Applications and Features:
Tabletop, hand-operated
Another name:
POLYSEALER®
Operating method:
Hand-operated
Packaging type:
Seal only
Daily use frequency as model selection guideline:
Up to 1,000 bags, hand-operated
Bag size:
Up to 30 cm/ 11.8 inches
Latest type:
Type D
Compatible packaging materials (total thickness of two or more sheets):
PE : 0.2 mm (7.9 mil),
PP : 0.2 mm (7.9 mil),
NY : 0.1 mm (3.9 mil),
PVA : 0.1 mm (3.9 mil),
other laminated materials : 0.1 mm (3.9 mil)
Overview of P-300, PC-300 series
P/PC-300 is the most basic, easy-to-use impulse sealer suitable for the wide varieties of industries and packaging needs.
Only depressing lever lightly is needed for strong and beautiful sealing.
As it is an impulse sealer, it is ready to use just by plugging in to the wall outlet. Pre-heating is not required. All you need to do is to adjust the heat time with the timer depending on the thickness of the films.
PC-300 comes with the cutting blade to cut off any excess material from the end of the bag.
■ Notification Lamp Ending Sound
Sealing process can be visually confirmed by notification lamp.
Lamp turns red during heating. It turns blue during cooling which is vital for beautiful seals.
When the lamp turns off, a beep sound will be heard, indicating the sealing is complete.

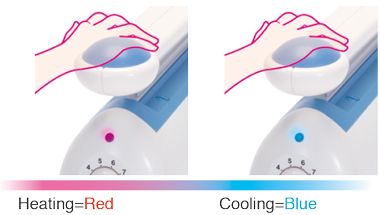

■ Conceptual illustration of lamp color.

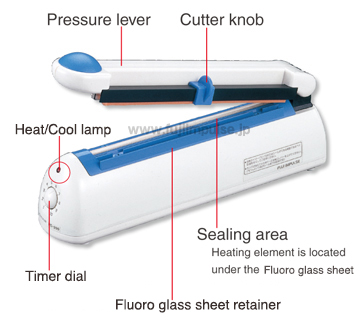

■ Simple operation
Use the heating-time adjuster knob facing you to set the appropriate heating time for the bag.
Lower the clamping lever using one hand. The heating light will turn on. Sealing is completed when you hear a brief beeping sound.
Photo of P-200
■ Good for a variety of packaging materials
This is a single heater sealer capable of sealing materials up to 0.2 mm thick (total thickness of overlapping sheets).

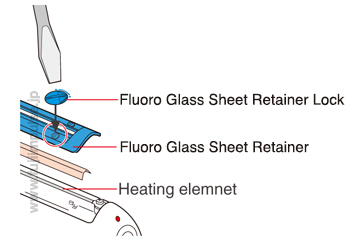

■ Easy maintenance
The heating element and other relatively frequently replaced parts are easily replaced by removing the Teflon-sheet holder. Simply remove the Teflon-sheet holder using a flat-head screwdriver.

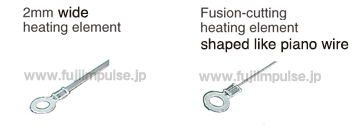

■ Good for 2mm seals and fusion-cut seals
The sealer comes equipped with a 2 mm heating element when it is shipped from the factory.
The 2 mm heating element may be replaced with a fusion-cut heating element as needed to create fusion-cut seals.
For details on how to replace the heating elements, please refer to the Instruction Manual.
A fusion-cut seal is created by using a piano-wire-like heating element to melt and cut the film. Although the films are slightly fused together, there is hardly any strength in the sealing.
■ A variety of applications
It is ideal for individual packaging at stores, and for small packaging of parts and food materials at plants. The compact body takes up minimal space and is very mobile.
Photo of PC-200

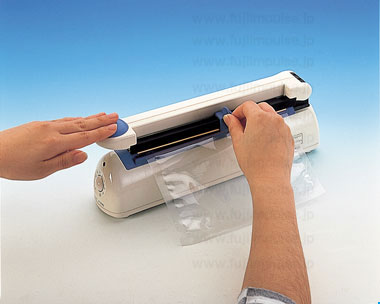

■ Cutter mechanism: PC-300
On a PC sealer, the user can slide the cutter knob after the sealing is completed to cut off any excess material from the end of the bag. This cutter feature can be used to create multiple bags from tube-shaped film.
Photo of PC-200
