FEP-N3 Series

Installed on OPL, FA, Fi, and other series sealers, enabling simultaneous printing during sealing.
PTC heater is used for rapid heat-up, making it an economical printer with low power consumption.
Supports two-line printing, and the print content can be changed by replacing the type.

Hot Stamp Printer

Beautiful Printing During Sealing

FEP-N3

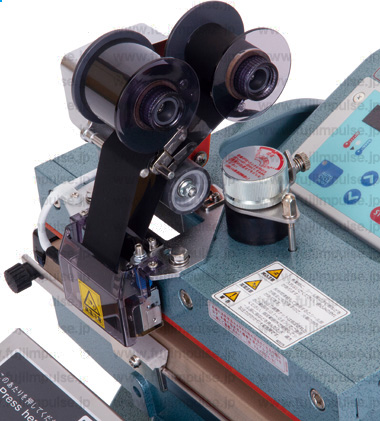

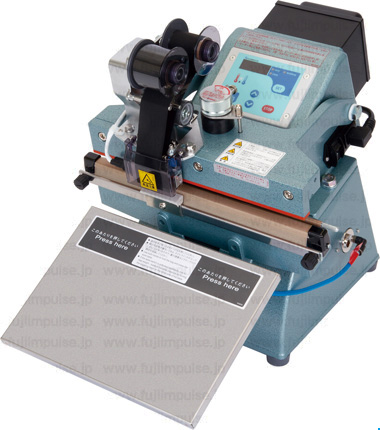

Example of FEP-N3 installed on FA-300.

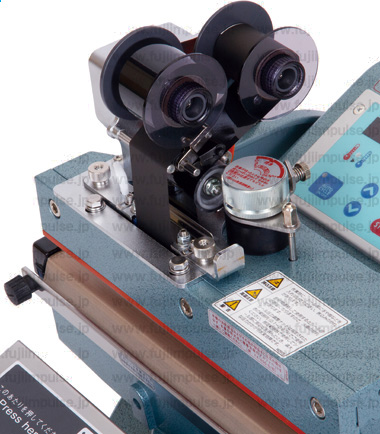

Example of FEP-OS-N3 installed on FA-300.

Product Lineup

FEP-N3

Example installation on FA-300. Click here to see the full sealer setup.

FEP-OS-N3

Example installation on FA-300. Click here to see the full sealer setup.

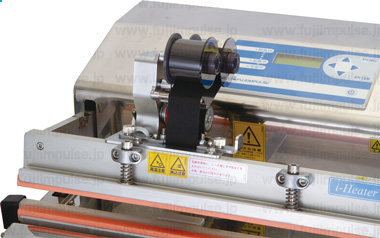

FEP-VA-N3

FEP-VA-N3 is a dedicated printer for the V-460, V-610, V-460G, V-610G, VA-460G, and VA-610G series.
Example installation on V-460. Available as a factory-installed option at purchase.

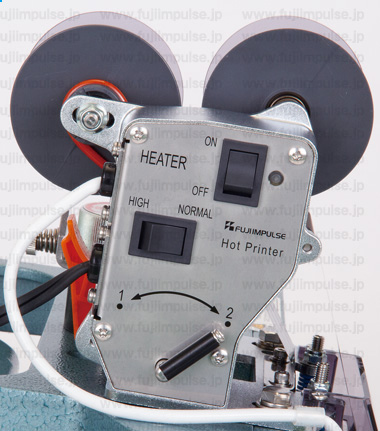

Switch panel of the FEP-N3 series.
Easy printing condition setup.

Main Features

Applications and Features: 2-Line Printer (1-Line Capable)：

・ FEP-N3＝ Inside 2-line Printer

・ FEP-OS-N3＝Outside 2-line Printer

・ FEP-VA-N3＝Outside 2-line Printer

Printable Packaging Materials: KOP, NY/PE, PE, Paper and other surfaces that are not rough or uneven.

However, printing quality may vary by material.
Feel free to request a print test before purchase.

Sealer Options:Compatible Models List

■Overview of FEP-N3 Series

■ Beautiful Printing During Sealing

Excellent resistance to boiling and scratching enables beautiful printing during sealing.
Supports both 2-line and 1-line printing with simple adjustment.
PTC heater is used for rapid heat-up, making it an economical printer with low power consumption.

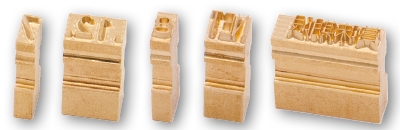

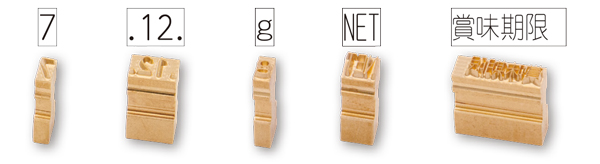

■ Movable Type Printing

Printing content can be changed by replacing the type.
The types are made of brass.

2-Line Printing Sample

■ No Ink Used

Hot stamping creates prints by pressing heated type to burn and bond the print tape onto the object, without using ink.

Standard Consumption per Print Tape

・ 2-Line Printing About 6,000 Prints

・ 1-Line Printing About 12,000 Prints

■ Easy-to-Read Universal Design Font Adopted

Arabic numeral typeface uses MORISAWA’s UD font, which offers excellent readability.

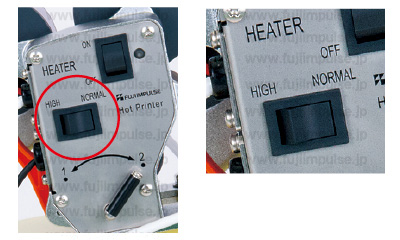

■ Temperature Switching for Various Environments

The printing temperature can be set to two levels to suit different packaging materials and work environments.
For example, selecting HIGH in cold regions expands the usable range.

■ Stable Printing Performance

■Reduced Thermal Deterioration of Print Tape

In previous models, constant contact between the type and print tape caused unclear prints after a break.
To address this instability, a tape guide has been adopted to prevent contact between them during standby.
This improvement enhances printing stability by reducing tape deterioration caused by unnecessary heating and residual heat.

■Reduced Winding Failure of Print Tape

The print tape securing method has been improved to reduce winding failures and prevent unclear printing.

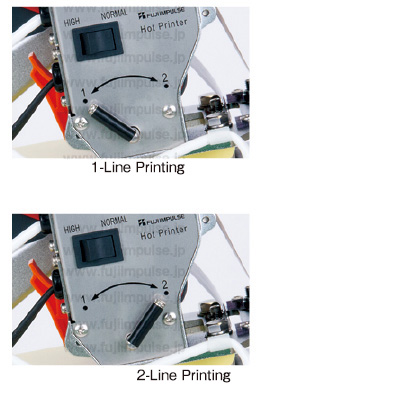

■ Adjustable Printing Line

1-line or 2-line printing can be selected based on the type holder’s content.
For 1-line printing, insert a 36 mm spacer in the unused print line.
After changing the print line, adjust the tape feed amount accordingly to avoid wasting print tape.

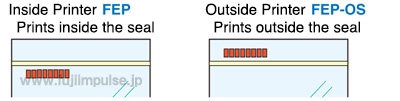

■ Inside Printing & Outside Printing

This printer is designed to be installed on the sealer for printing.
FEP-N3 prints on the inside of the seal (product side).
FEP-OS-N3 and FEP-VA-N3 print on the outside of the seal (bag edge side).

* FEP-OS-N3 cannot be installed on double-side heating models or on the OPL-200 and FA-200 Series.

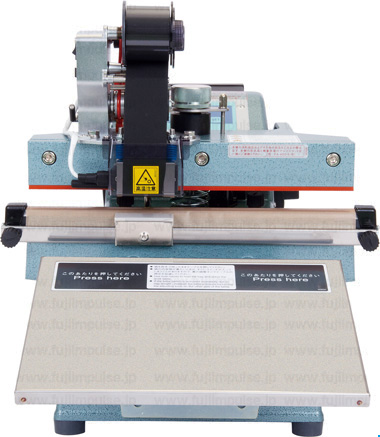

FEP-N3
installed on FA-300

FEP-OS-N3
installed on FA-300

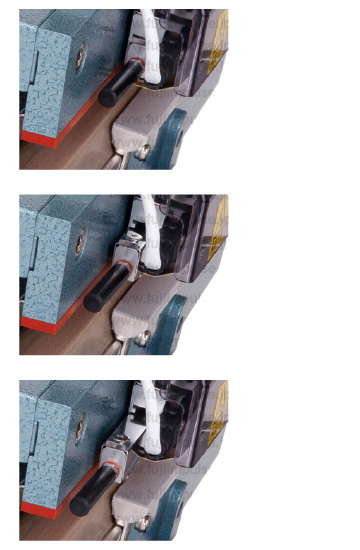

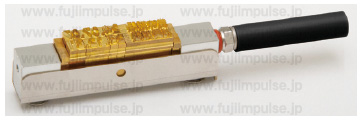

■ Easy Type Replacement

Type holder, which aligns the types, can be easily detached by pulling it out from the side of the heater section.
This design simplifies replacement and reduces workload.

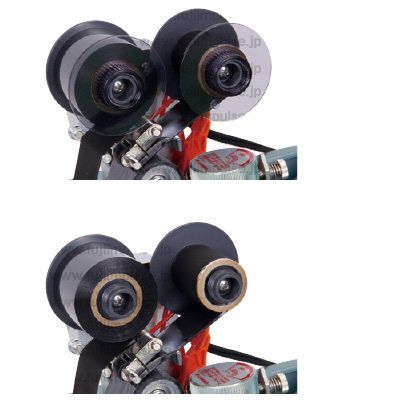

■ Easy Print Tape Replacement

FEP-N3 series uses flanges to secure the print tape, making replacement easier.
Removing the flanges before replacement helps prevent the paper core from staying fixed while the tape separates.
