Hot Stamp Printer (Option for Fujiimpulse Sealer)

Print While You Seal

FEP-N2

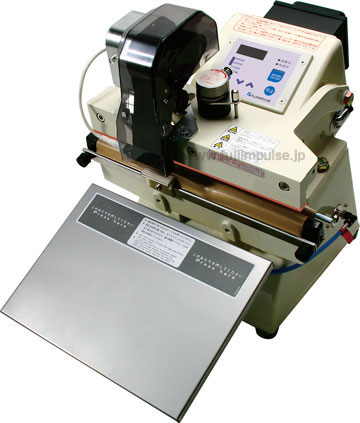

An example of FEP-N2 printer being installed on OPL-300-5. Click here to see the whole image.

 

FEP-OS-N2

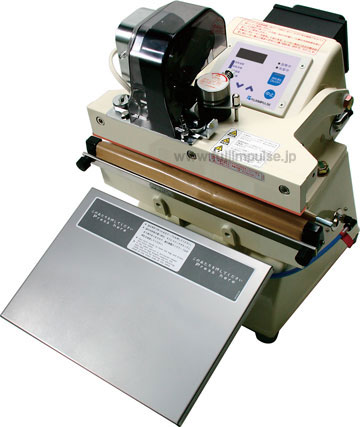

An example of FEP-OS-N2 printer being installed on OPL-300-5. Click here to see the whole image.

 

FEP-V-N2

An example of an FEP-V-N2 printer being installed on VG-602.
FEP-V-N2, a manufacturer option, may be installed at the time of purchasing the sealer unit.

 

Main Features

Applications and Features: Hot printer, two-line printing device (also one-line printing capable)：

・  FEP-N2＝Two-line printing device for inside

・  FEP-OS-N2＝Two-line printing device for outside

・  FEP-V-N2＝Two-line printing device for outside

Printable packaging materials: KOP, NY/PE, PE, paper, etc.

Latest type: Type E

Sealer options:List of Compatible Models

 

---

■Overview of FEP-N2

FEP-N2 series is used by installing to the OPL, FA, Fi series impulse sealers.
The beautiful print can be created while you seal. The electronic heating element reduces the warm-up period and cuts energy consumption, making this an economical printer.
The printer is a two-line printing device that may also beused as a one-line printing device by modifying the setting."

---

 

■ Print while you seal

Strong against boil processing and scratches, the beautiful print can be created while you seal. ※
The printer is a two-line printing device that may also be used as a one-line printing device by modifying the setting.
The electronic heating element reduces the warm-up period and cuts energy consumption, making this an economical printer.

※:  The type may not print well on some films (e.g., OP and CP).

---

■ Click here for a detailed explanation of the mechanism of the FEP-N2 series.

 

■ Prints are made using type

The text can be changed by replacing type. They are made of zinc alloy.

 

■ Inside printing and outside printing

This is a printer that is installed to a sealer for printing.

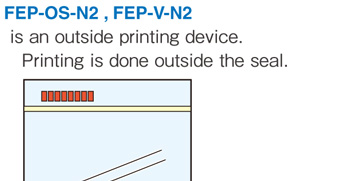

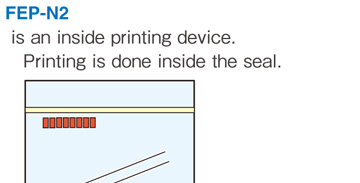

FEP-N2 is a printer that prints inside the seal. FEP-OS-N2 and FEP-V-N2 are printers that print outside the seal.

Note:  FEP-OS-N2 cannot be installed on a double side heating sealer, OPL or FA size 200.

 

 

FEP-N2

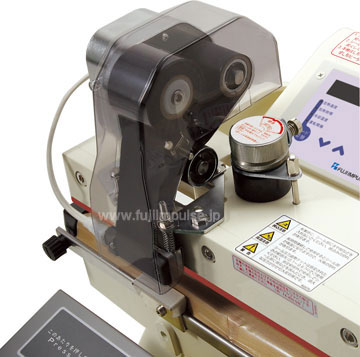

An example of FEP-N2 being installed on OPL-300-5

 

 

FEP-OS-N2

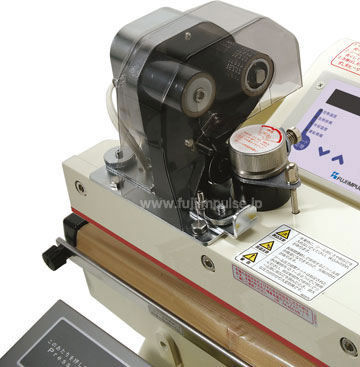

An example of FEP-OS-N2 being installed on OPL-300-5

 

■ No ink is used

Printing is done without ink, by using heated type to print the carbon from the print tape.
Standard number of letters printed using a single roll of print tape:

・  Two-line print = about 6,000 letters

・  One-line print = about 12,000 letters.
