STEAMSEALER® ＝EPV-610
Ejector type Vacuum STEAMSEALER® ＝EPV-610NTW
Two types of STEAMSEALER® need no power supply
This explosion proof sealer can be used for packaging at a hazardous location.

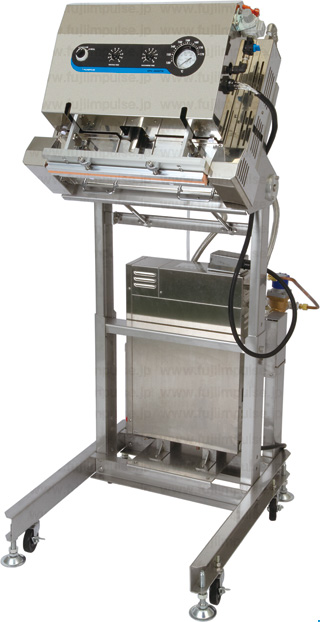

This is an example picture of EPV-NTW model (seal length 460 mm)

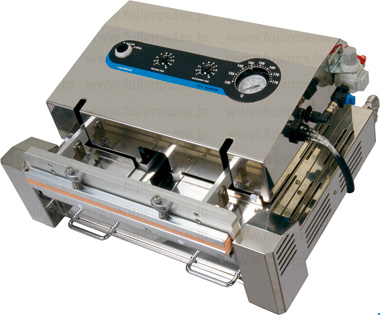

This is an example picture of EPV-NTW model (seal length 460 mm)
We have sold the Intrinsic Safety Explosion Proof Sealer of EPL-1000 series since 2014.
Now, we have successfully developed the new STEAMSEALER® that needs no power supply.
* Specification and appearance might be slightly different from the actual product.
■ Work without any electricity
These seales do not need any electricity and work with saturated vaper and compressed air.
It makes possible to operate the selaer in hazardous area.
*Saturated vaper and compressed air should be prepared at the factory.
■ Available in the flammable atmosphere of ignition temperature class G2
Since the steam sealer uses only saturated vapor, the surface temperature never goes up beyond 175 ℃ (347 F)

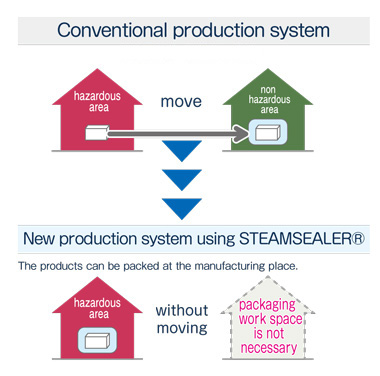

■ Available in hazardous area
These sealers can be used even in Zone (Class I, Division 1) or Zone 2 (Class I, Division 2).
It saves labor and cost for securing non hazardous area separately for packaging work.
■ NTW model (vacuum sealer)
EPV-610 NTW model can remove the air in a pouch through vacuuming nozzle before sealing.
This ejector type vacuum sealer needs compressed air only, vacuum pump is not required.
■ Specifications
＊ Standard model
Product name |
EPV-610 |
EPV-610NTW |
|
Seal length (mm) |
610 (24") |
610 (24") |
|
Seal width (mm) |
8 (5/16") |
8 (5/16") |
|
Heating method |
Single lower side |
Single lower side |
|
Heating temperature |
120 - 160 ℃ (248 ℉) |
120 - 160 ℃ (248 ℉) |
|
Supply vapor pressure |
0.8 MPa |
0.8 MPa |
|
Steam flow |
10 kg/h |
10 kg/h |
|
Air source |
External air piping |
External air piping |
|
Machine dimensions |
780 (30.7") × 465 (18.3") × 300 (11.8") |
780 (29.5") × 475 (18.7") × 300 (11.8") |
(Note) Supply vapor pressure depends on the film material.
